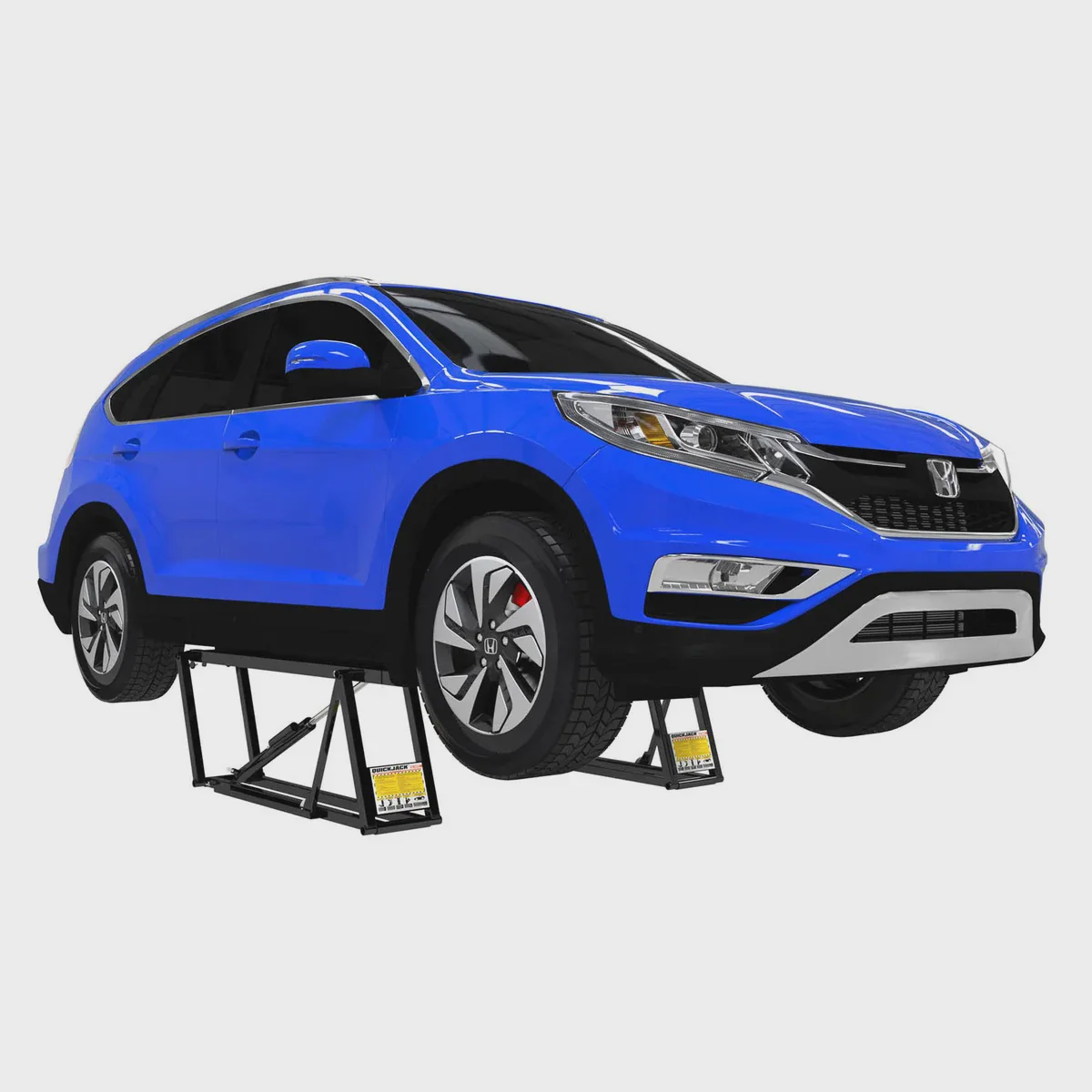

Quickjack 7000TL Portable Car Lifting System, 3,182 kg (7,000 lb.) Capacity

The 7000TL is our heaviest-duty portable car and truck lift system. Reinforced upper frame rails give this lift enough strength to effortlessly raise light-duty trucks and SUVs.

Features:

• Lifting capacity: 3,182 kg (7,000 lb.)
• 3 more inches added lifting height compared to the SLX model
• Dual position safety locks engage automatically as the lift rises
• Dual locking positions, mid-level and full rise
• Power unit features built-in hydraulic flow divider for precise equalized lifting
• Quick connect and disconnect hoses for fast and convenient set up
• Pendant remote control features 3.96 m (13 ft.) cord
• Portable power unit features a push button control for simple operation
• 110 V power unit
• Strong 14-gauge welded steel frames
• Portable unit can be easily stored away for future use
• Hydraulic fluid not included

Includes:

• 7000TL left and right frame assembly
• 1 × hydraulic power unit with control
• 4 × medium rubber lift blocks: 5.1 cm (2 in.)
• 4 × tall rubber lift blocks: 7.6 cm (3 in.)
• 2 × short hydraulic hoses
• 2 × long hydraulic hoses
• 2 × frame-positioning handles
• Fittings and thread tape for setup
• Instruction manual

Specifications:

• Overall frame length: 179.7 cm (70.75 in.)
• Lifting Height: 62.23 cm (24.5 in.)
• Collapsed: 8.9 cm (3.5 in.)
• Frame only: 53.34 cm (21 in.)
• With small block: 54 cm (21.25 in.)
• With tall block: 46.5 cm (22.25 in.)
• With stacked blocks: 62.2 cm (24.5 in.)
• Lifting point spread max: 152.4 cm (60 in.)
• Lifting point spread min: 94 cm (37 in.)

Box Dimensions (L x W x H):

• Box 1: 188 cm × 41.9 cm × 12.7 cm (74 in. × 16.5 in. × 5 in.)
• Weight: 48.2 kg (106 lb.)
• Box 2: 188 cm × 41.9 cm × 12.7 cm (74 in. × 16.5 in. × 5 in.)
• Weight: 48.2 kg (106 lb.)
• Box 3: 78.7 cm × 35.6 cm × 35.6 cm (31 in. × 14 in. × 14 in.)
• Weight: 29.5 kg (65 lb.)
